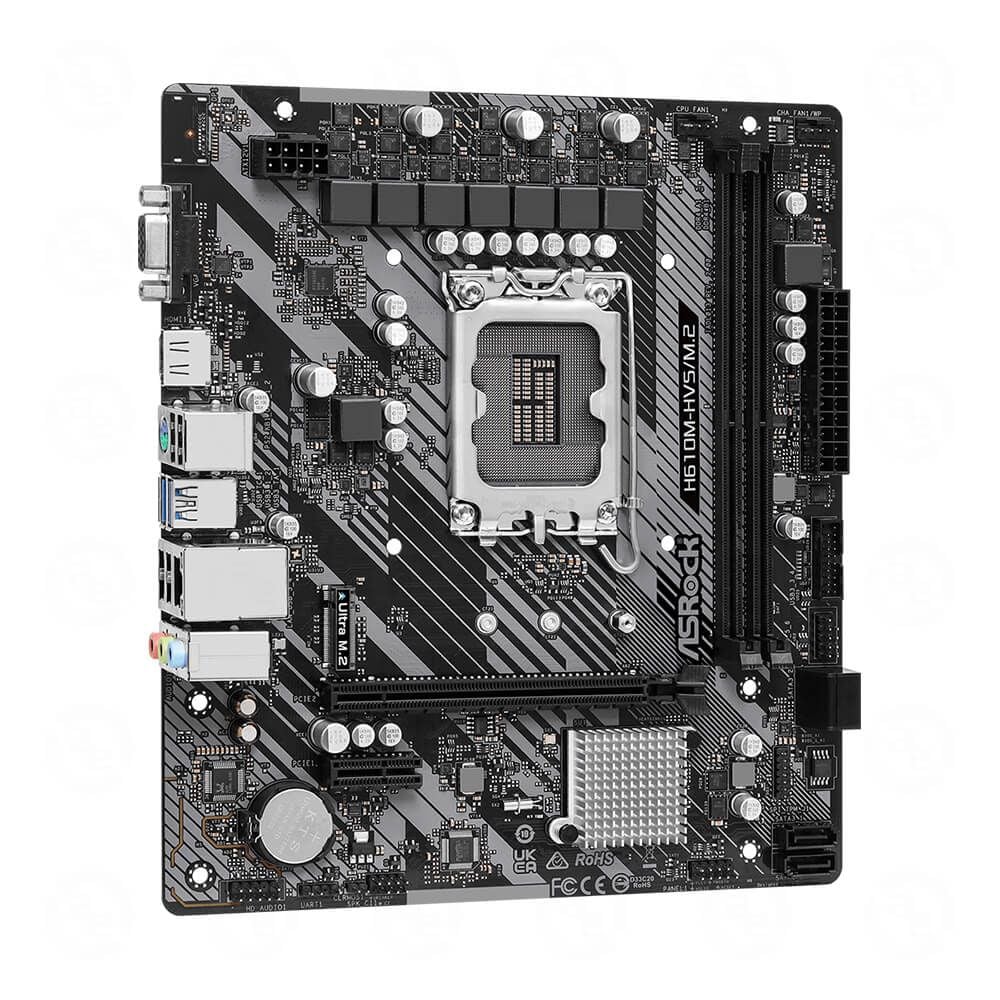

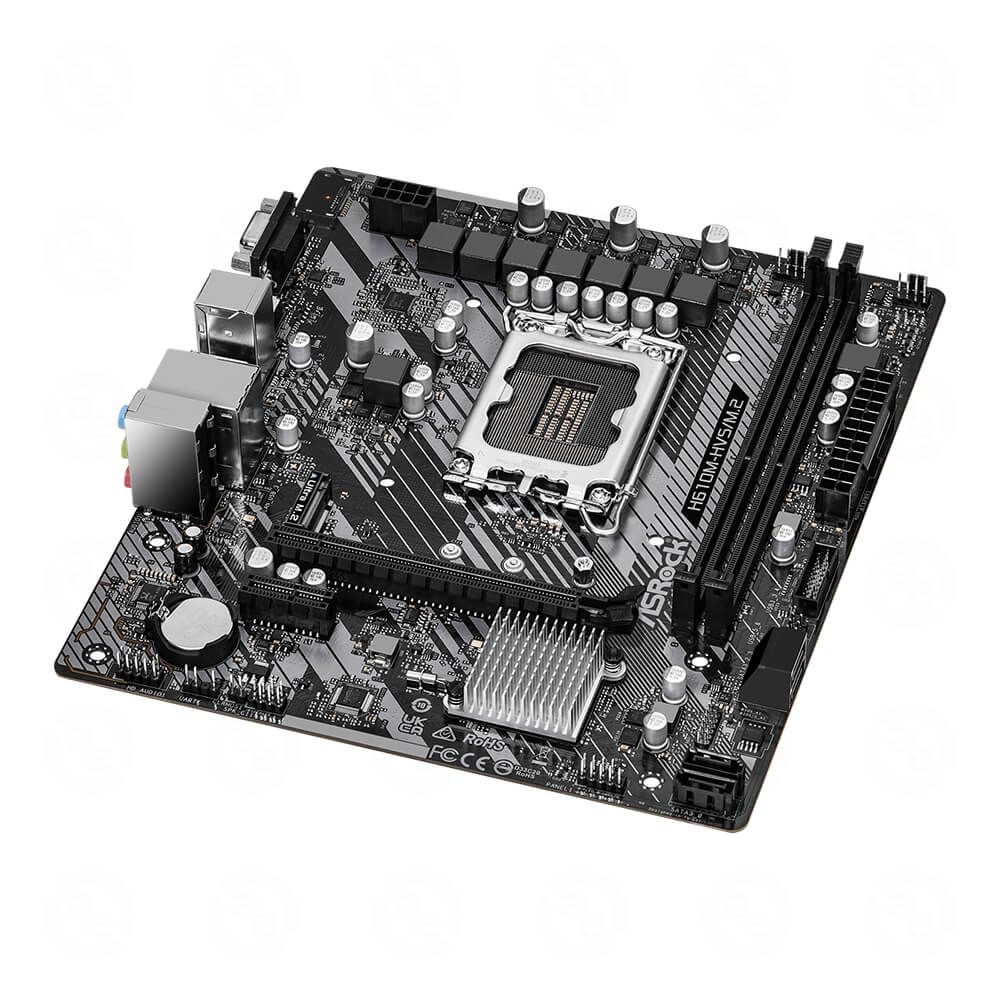

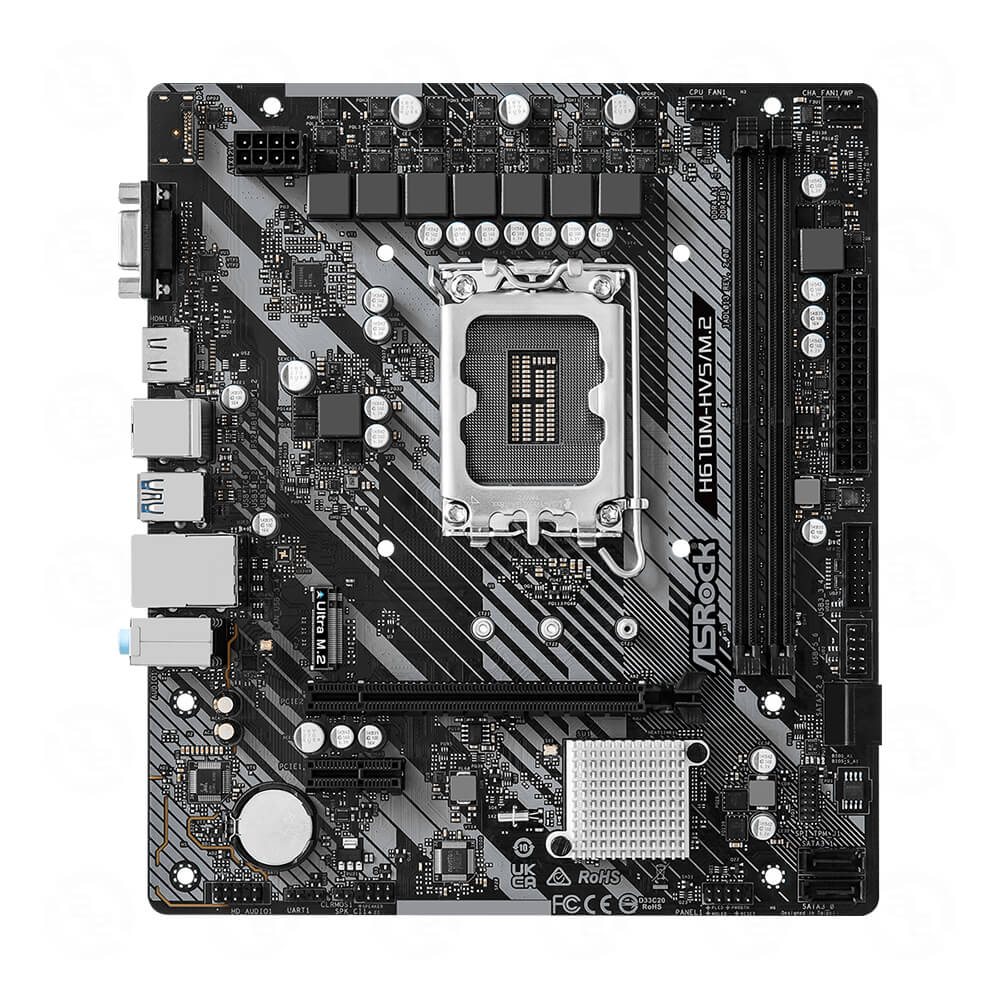

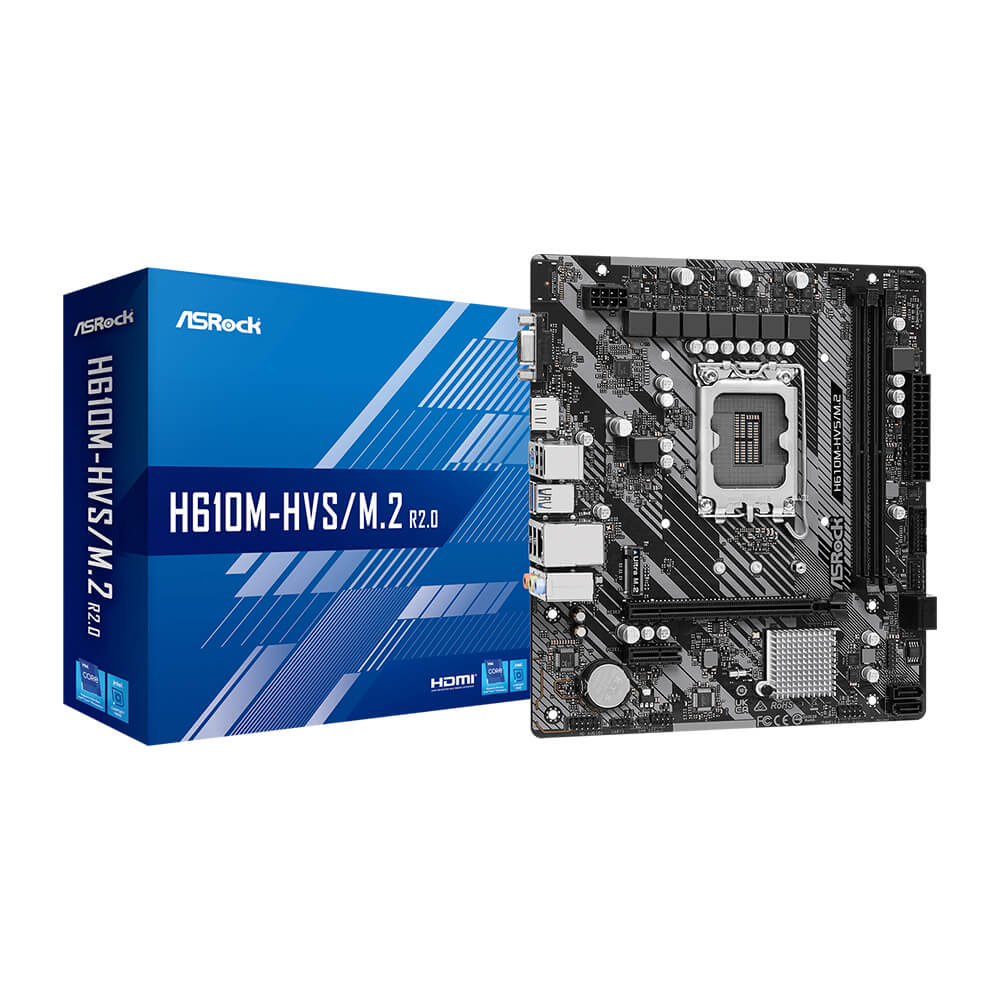

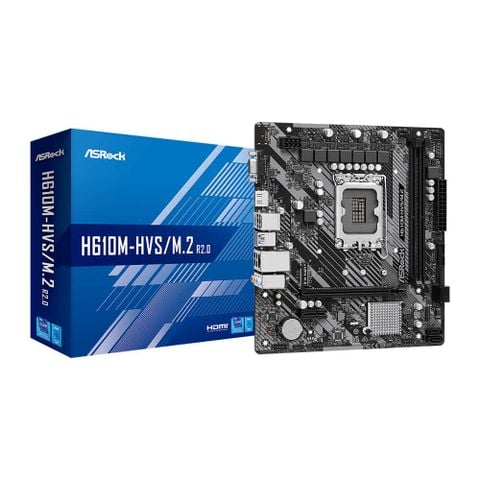

Mainboard Asrock H610M-HVS/M.2 R2.0

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

H610M-HVS/M.2 R2.0

CPU hỗ trợ

Intel

Chipset

H610

RAM hỗ trợ

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0

Khe cắm mở rộng

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1)

*Supports NVMe SSD as boot disks

Ổ cứng hỗ trợ

Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

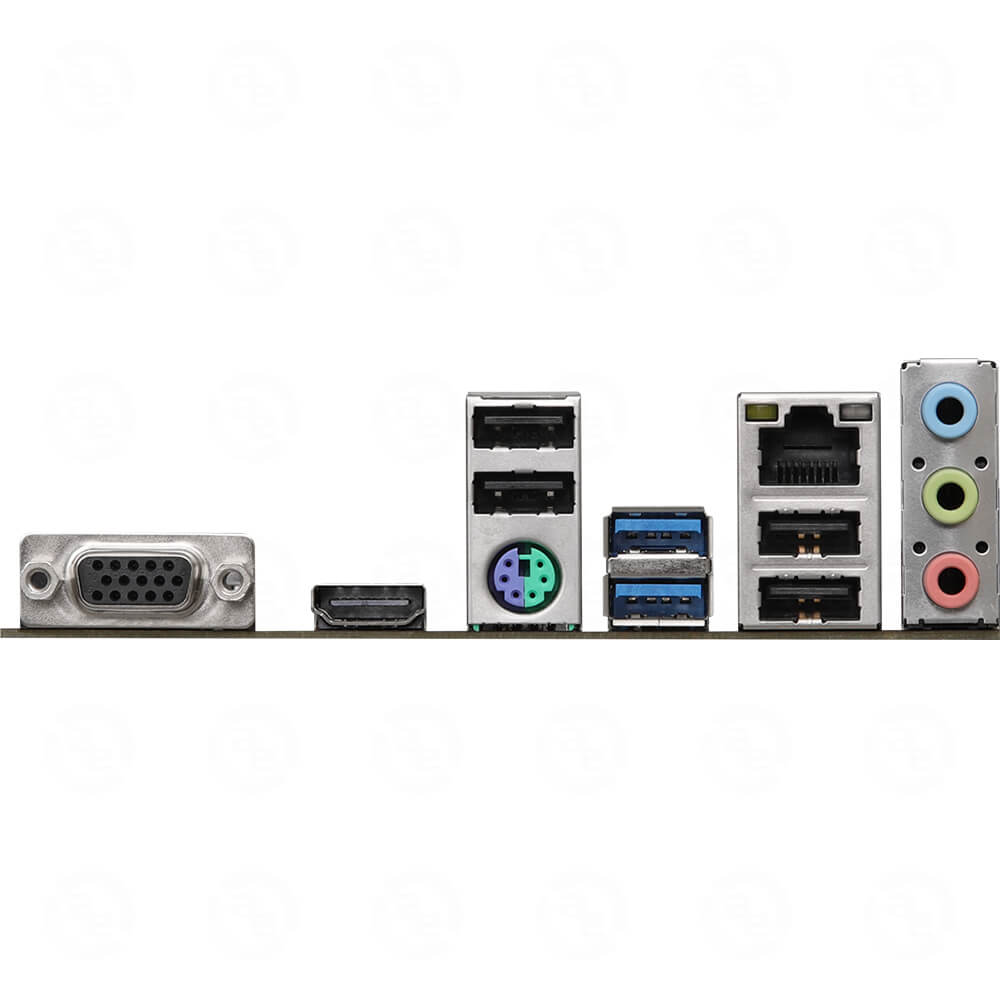

Cổng kết nối (Back Panel)

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Kích cỡ

- Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
- Solid Capacitor design
