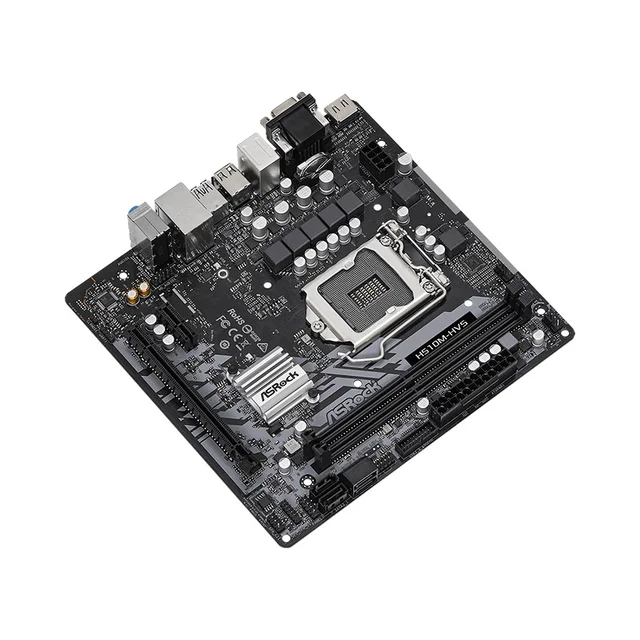

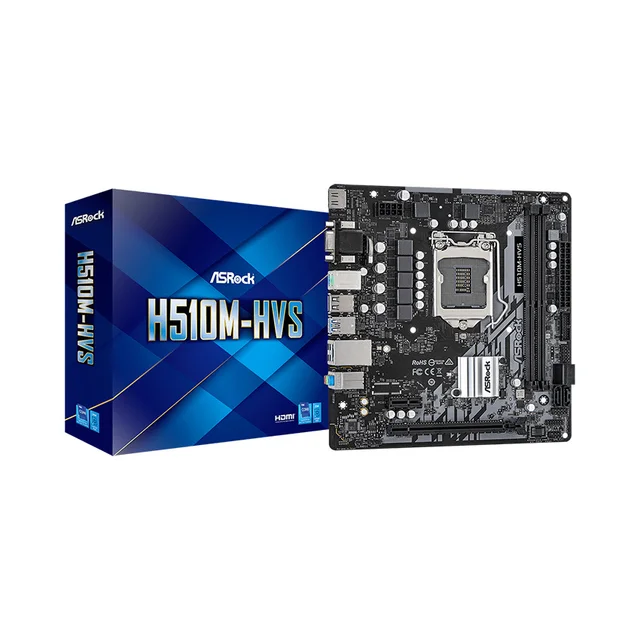

Mainboard ASROCK H510M-HVS/R2.0 (Intel H510, Socket 1200, m-ATX, 2 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASROCK

Model

H510M-HVS/R2.0

CPU hỗ trợ

Hỗ trợ cho thế hệ thứ 10&11 Intel® Core Socket LGA1200

Chipset

H510

RAM hỗ trợ

2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports DDR4 3200/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

11 Gen Intel Core Processors1 x PCI Express 4.0 x1 Slot10 Gen Intel Core Processors1 x PCI Express 3.0 x 16 Slot1 x PCI Express 3.0 x 1 Slot

Ổ cứng hỗ trợ

4 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Cổng kết nối (Back Panel)

1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

 PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H

Kích cỡ

Micro ATX Form Factor: 7.76 inch x 7.4 inch (19.7cm x 18.8cm)
