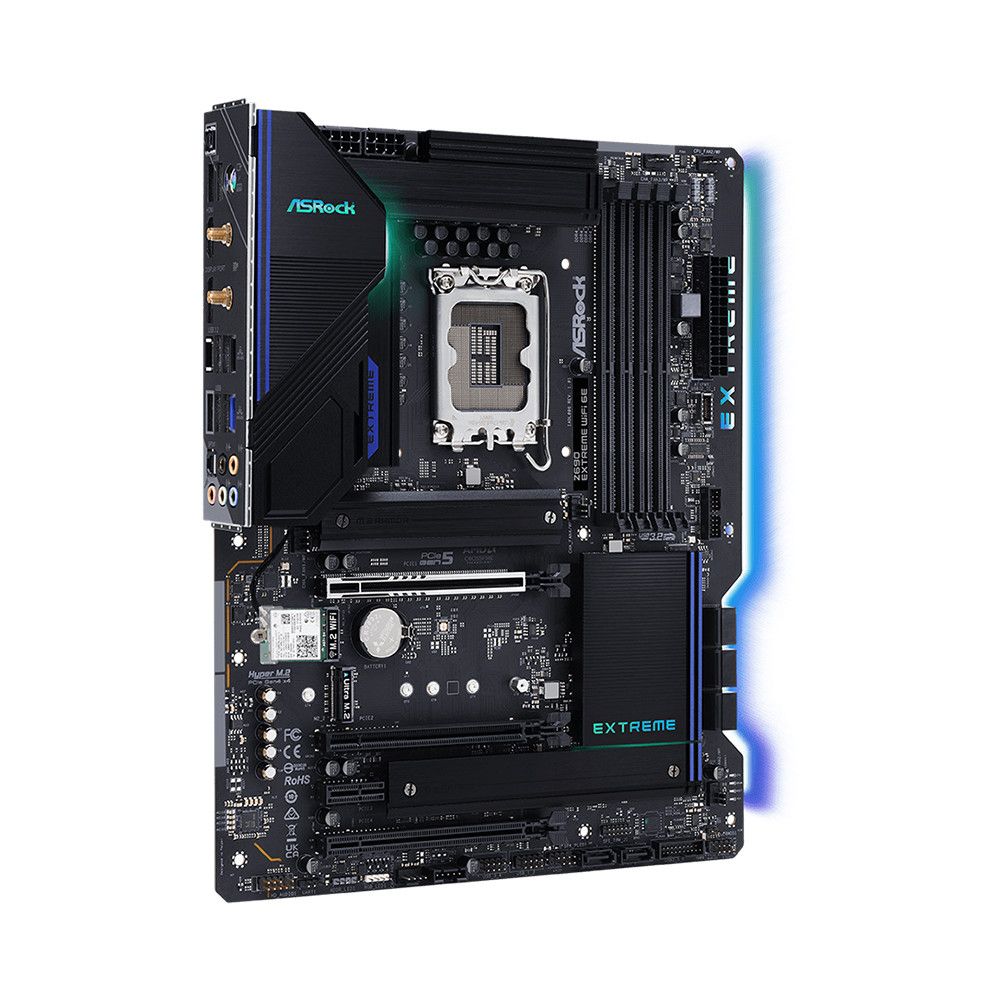

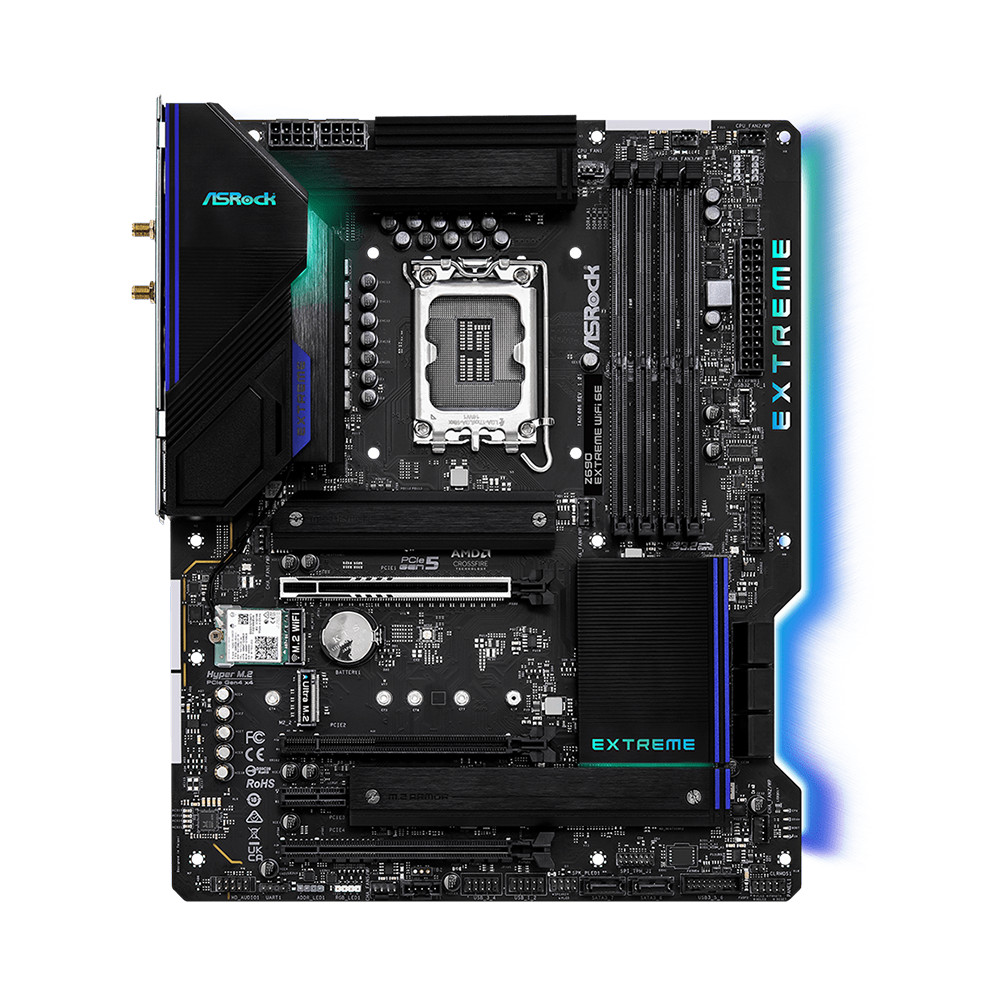

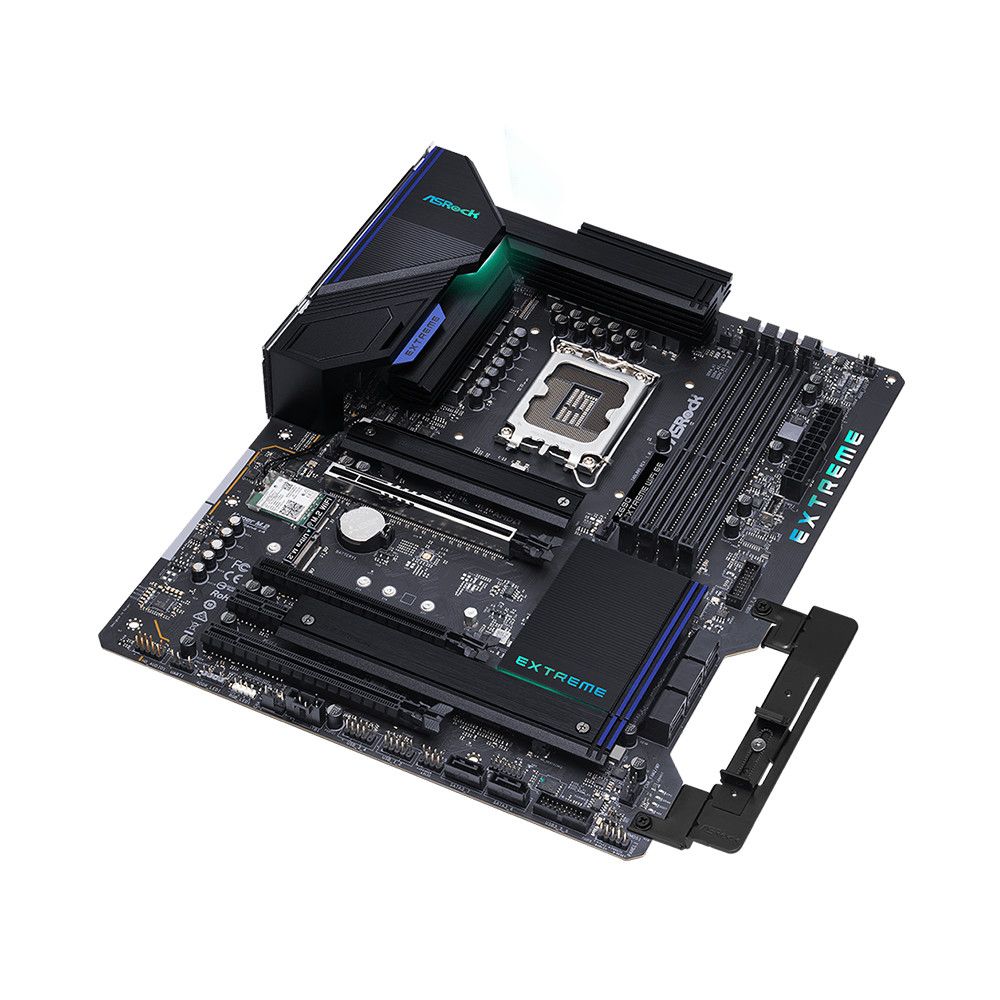

Mainboard Asrock Z690 EXTREME WiFi 6E

Thương hiệu: ASRock Mã sản phẩm: Đang cập nhật

7,990,000₫

Số lượng:

MUA TRẢ GÓPQua thẻ tín dụng (Credit Card)

Gọi đặt mua 0345.727.247 - 0906.325.469 (7h45 - 5h15 từ T2 - CN)

ĐẶC ĐIỂM NỔI BẬT

Mainboard Asrock Z690 EXTREME WiFi 6E

- Chuẩn mainboard: ATX
- Socket: 1700 , Chipset: Z690
- Hỗ trợ RAM: 4 khe DDR4, tối đa 128GB
- Lưu trữ: 8 x SATA 3 6Gb/s, 2 x M.2 NVMe, 1 x Ultra M.2 (PCIe & SATA3)
- Cổng xuất hình: 1 x HDMI, 1 x DisplayPort

Bảo hành chính hãng trong vòng 36 tháng.

Xem thêm

THÔNG SỐ KỸ THUẬT

Unique Feature	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 60A SPS (Smart Power Stage) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Shaped PCB Design - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB 2.5G LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 12th Gen Intel^® Core™ Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel^® Hybrid Technology - Supports Intel^® Turbo Boost Max 3.0 Technology
Chipset	Intel^® Z690
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel^® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics	- Intel^® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Inpidual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
LAN	1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Wireless LAN	- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) persity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO
Slots	- 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4))* - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	- 8 x SATA3 6.0 Gb/s Connectors* - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode**
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

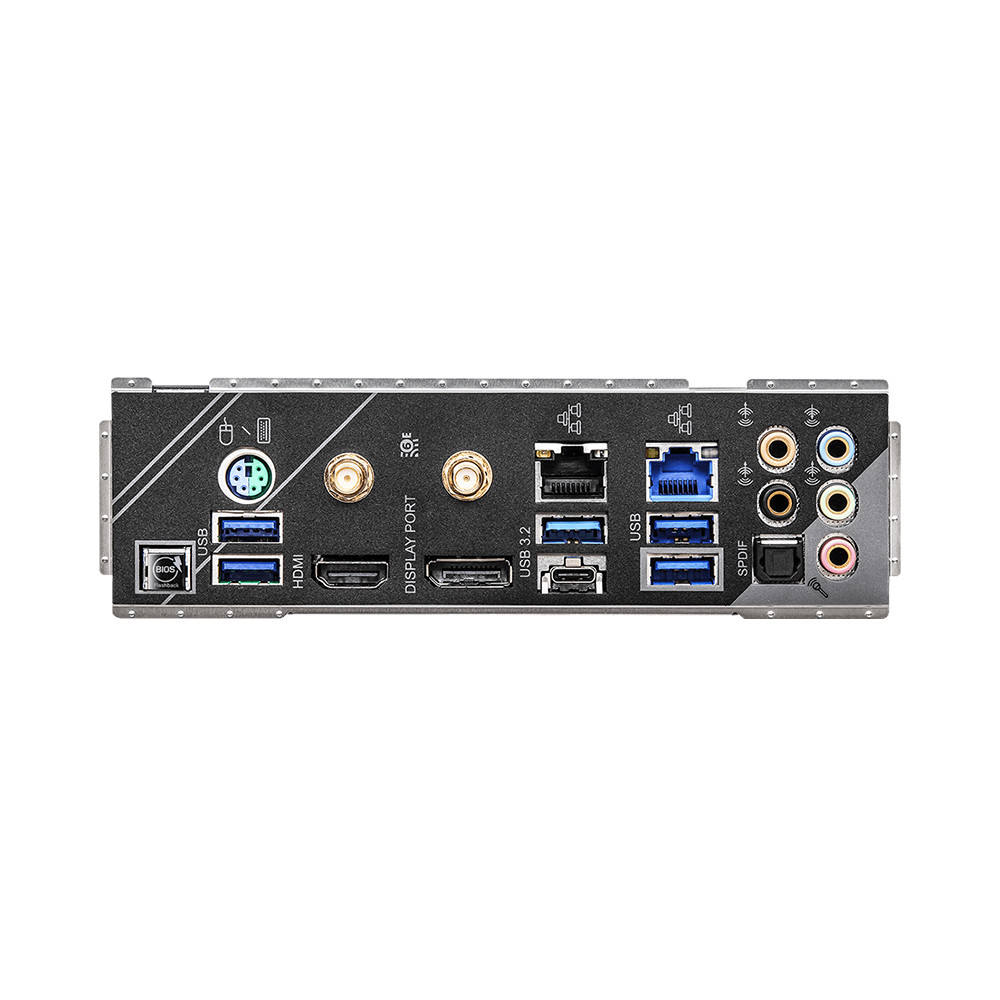

Rear Panel I/O	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

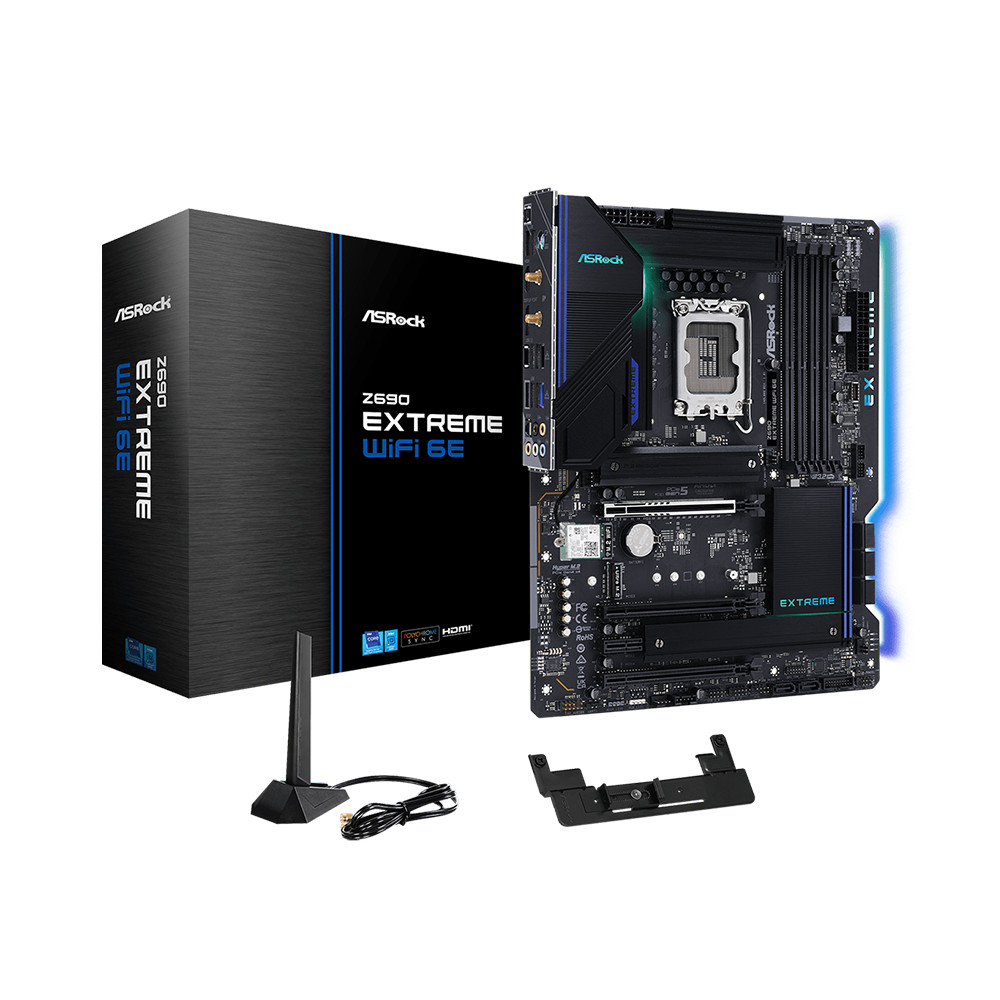

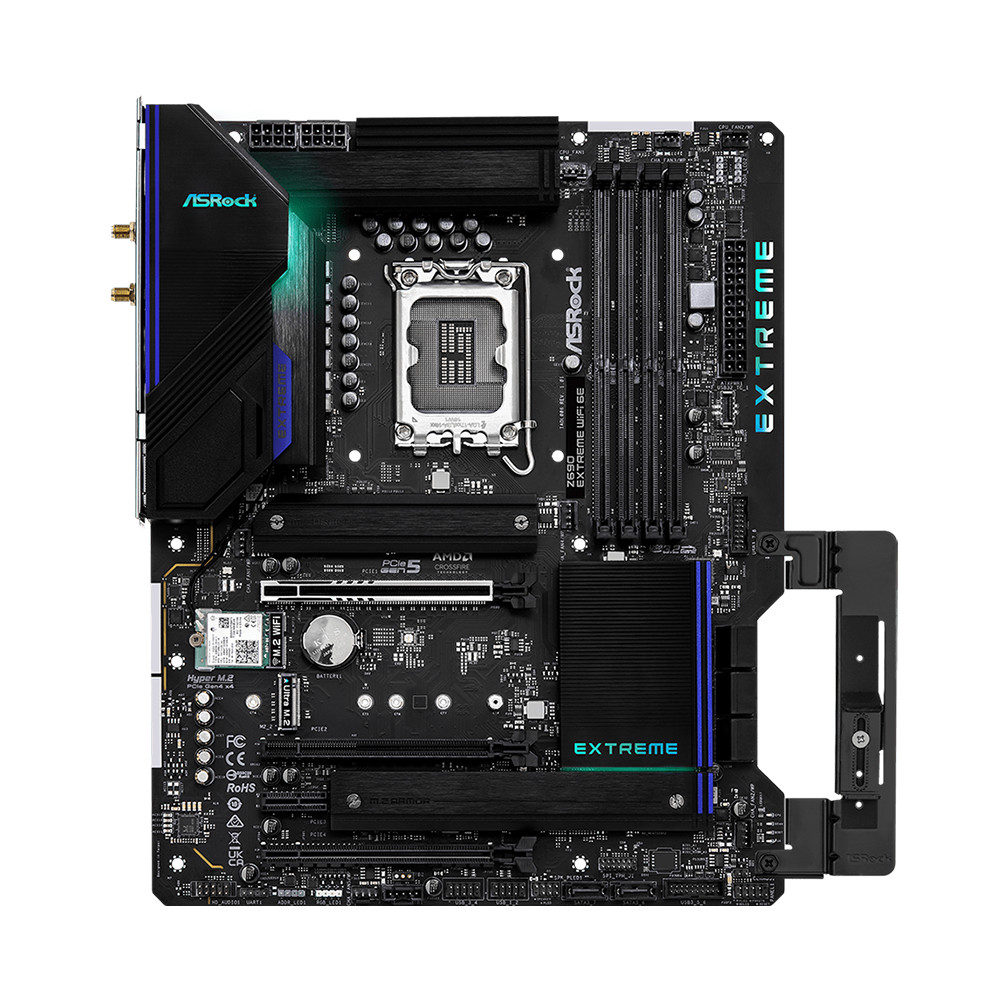

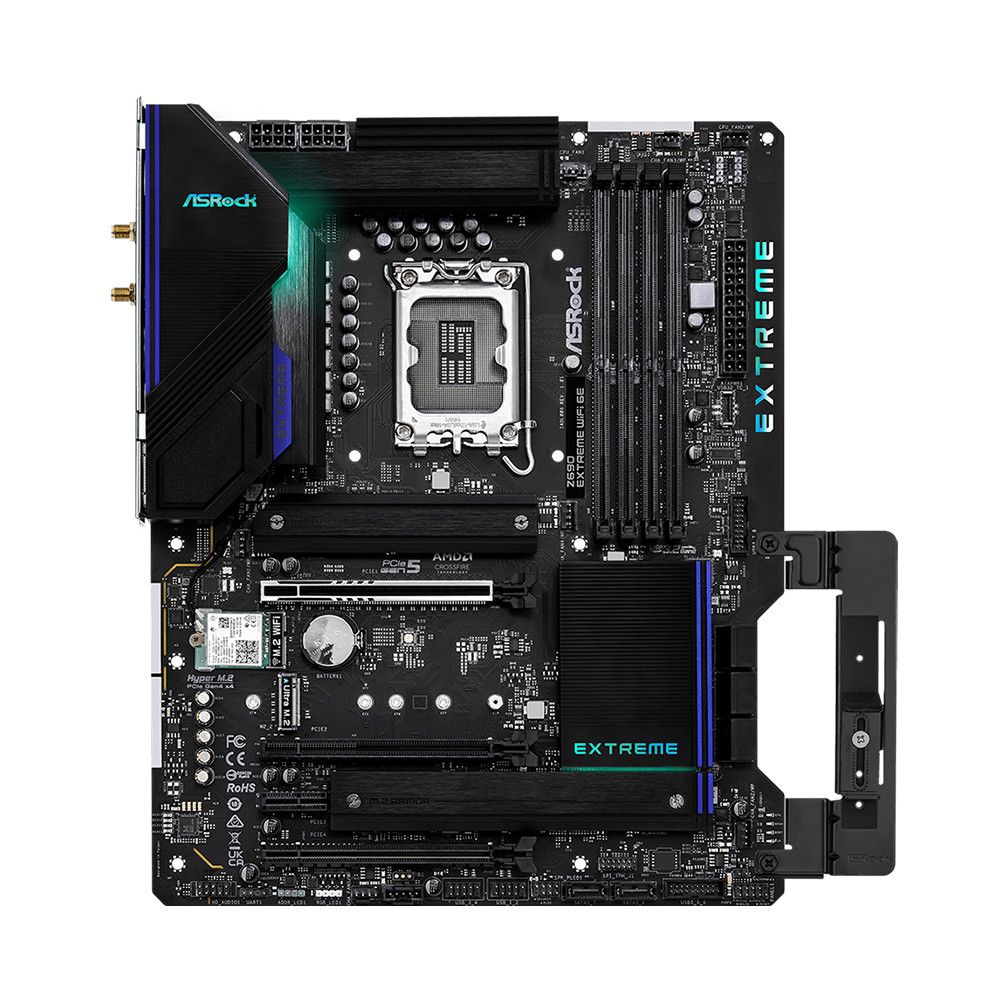

Accessories	- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets - 1 x Graphics Card Holder
Hardware Monitor	- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, FIVR_SA_LOAD, +0.82V PCH, +12V, +5V, +3.3V
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
OS	- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready
Bảo hành	36 tháng
Hãng sản xuất	Asrock
